Concentric Reducer/ Eccentric Reducer

Yash Fittings is a reliable manufacturer and supplier of industrial pipe fittings of high quality, providing dependable and precisely engineered solutions for multiple industries. Concentric and Eccentric Reducers, among their long list of products, can be found in different grades including ASTM A234 (carbon steel and alloy steel), ASTM A403 (stainless steel), and ASTM B366 (nickel alloys). These reducers are specifically made to effectively join pipes of varying sizes in order to provide smooth flow and no turbulence. They are commonly applied within the oil & gas, petrochemical, power, and process industries. They offer durability, leak-proofing performance, and reliability during operation.

Inconel Eccentric Reducer Supplier in India, Copper Nickel Eccentric Reducer Price List in Mumbai, Alloy Steel Pipe Fittings Supplier in Mumbai, Alloy Steel Reducer Exporter in West Mumbai, Carbon Steel Eccentric Reducer Exporter in India, Titanium Concentric Reducer Exporter in Mumbai, Monel Buttweld Concentric Reducer in Mumbai, Monel Concentric Reducer Size Chart, Stainless Steel Eccentric Reducer Price in Mumbai, Duplex Steel Concentric Reducer Weight Chart, Alloy Steel Concentric Reducer Supplier in India, Incoloy Concentric Reducer Stockist in Mumbai

Concentric and Eccentric Reducers are made of different materials like carbon steel, stainless steel, alloy steel, and nickel alloys, based on the use. Chemically, their constitution differs in terms of grade—for instance, stainless steel reducers (ASTM A403) have chromium and nickel for corrosion protection, while alloy steel (ASTM A234) has high-temperature strength. Mechanically, the reducers exhibit high tensile and yield strength, superior resistance to impact, and endurance under pressure. Physically, they have good dimensional stability, heat resistance, and pressure-handling ability, and are effective and reliable performers in piping systems in a variety of industrial environments.

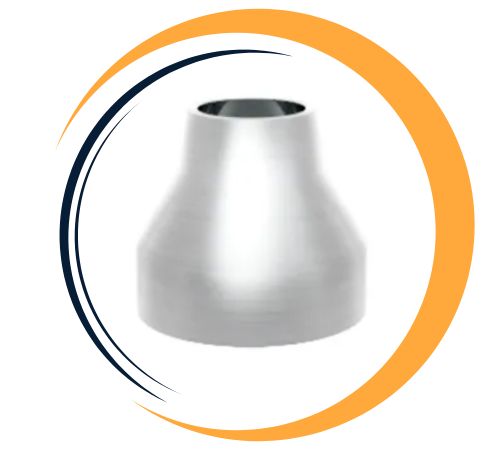

Concentric Reducer Specification

We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Buttweld Concentric Reducer size	Welded Reducer : 1/2″ – 48″
Buttweld Concentric Reducer Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Buttweld Concentric Reducer Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Buttweld Concentric Reducer Connection	Welding
Size Range	½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Reducer
ASME B16.9 Buttweld Concentric Reducer Manufacturing process	Push, Press, Forge, Cast, etc.
Buttweld Concentric Reducer Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
ANSI B16.9 Buttweld Concentric Reducer Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian

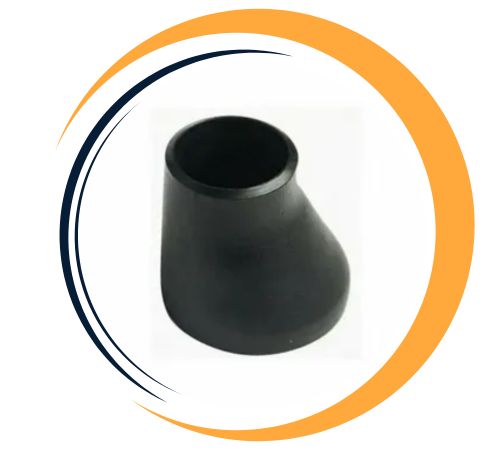

Eccentric Reducer Specification

We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Buttweld Eccentric Reducer size	Welded Reducer : 1/2″ – 48″
Buttweld Eccentric Reducer Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Buttweld Eccentric Reducer Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Buttweld Eccentric Reducer Connection	Welding
Size Range	½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Reducer
ASME B16.9 Buttweld Eccentric Reducer Manufacturing process	Push, Press, Forge, Cast, etc.
Buttweld Eccentric Reducer Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
ANSI B16.9 Buttweld Eccentric Reducer Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian

Copper Nickel Eccentric Reducer Price List in Mumbai, Copper Nickel Concentric Reducer Supplier in Mumbai, Duplex Steel Concentric Reducer Dealer in West Mumbai, Alloy Steel Eccentric Reducer Supplier in West Mumbai, Carbon Steel Reducer Fittings Exporter in Mumbai, Alloy Steel Straight Reducer Size Chart, Monel Buttweld Concentric Reducer Price in Mumbai, Super Duplex Steel Eccentric Reducer Thickness, Inconel Buttweld Concentric Reducer Supplier in India, Carbon Steel Concentric Reducer Stockist in Mumbai, Titanium Eccentric Reducer Exporter in India

Largest Concentric Reducer/ Eccentric Reducer Supplier in Mumbai, India

Yash Fittings is a leading supplier of Concentric Reducer and Eccentric Reducer in Mumbai, India. We offer an extensive range of Concentric Reducer and Eccentric Reducer, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Concentric Reducer/ Eccentric Reducer from Braxton Fitttings?

Concentric Reducer/ Eccentric Reducer from Yash Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Nickel Alloy Reducer in Mumbai, Duplex Steel Buttweld Concentric Reducer Distributor in India, Alloy Steel Concentric Reducer Supplier in Mumbai, Copper Nickel Alloy Reducer Weight Chart, Incoloy Eccentric Reducer Exporter in Mumbai, SS Buttweld Concentric Reducer Manufacturer in West Mumbai, Duplex Steel Eccentric Reducer Price List in India, Hastelloy Reducer Sizes in mm, Monel Concentric Reducer Distributor in Mumbai

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

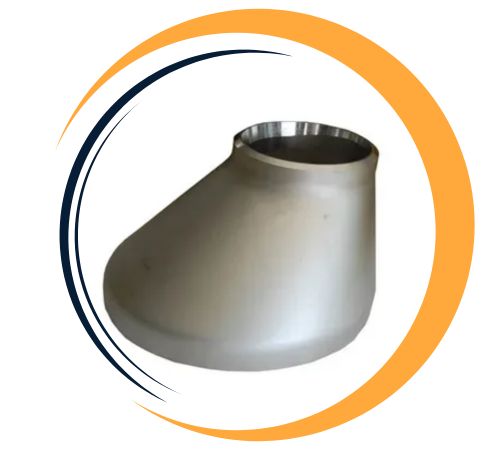

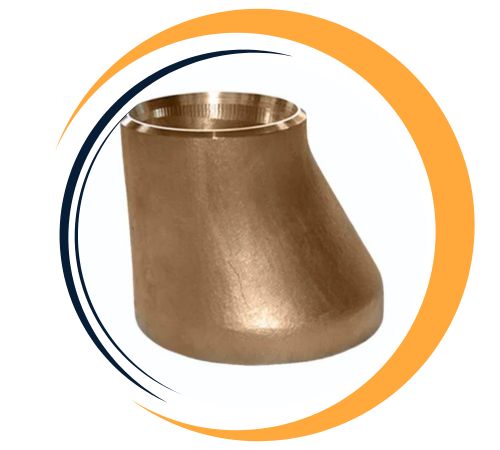

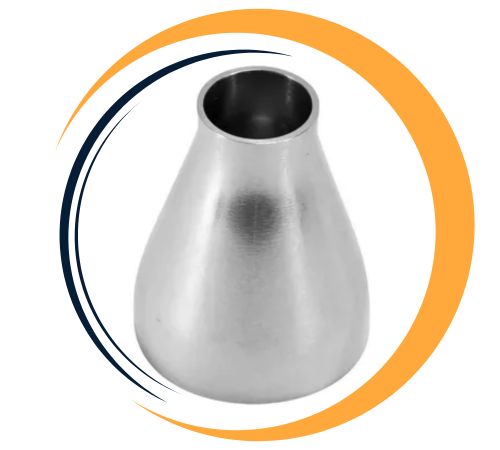

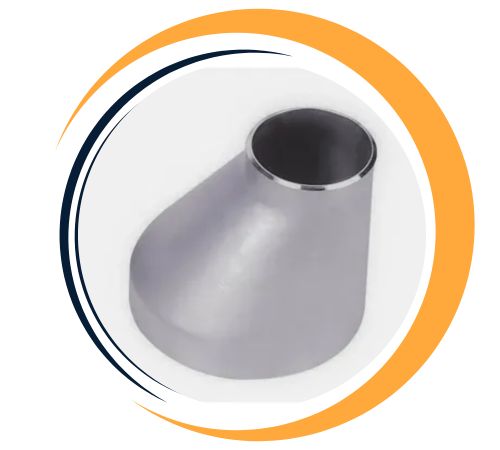

Types of Concentric Reducer/ Eccentric Reducer

Concentric Reducer Dimensions Chart

Nominal Diameter		Outside Diameter		End to End
Nominal Diameter		D1*D2		End to End
DN	NPS	Series A	Series B	H
20×15	3/4×1/2	26.9×21.3	25×18	38
20×10	3/4×3/8	26.9×17.3	25×14	38
25×20	1×3/4	33.7×26.9	32×25	51
25×15	1×1/2	33.7×21.3	32×18	51
32×25	1.1/4×1	42.4×33.7	38×32	51
32×20	1.1/4×3/4	42.4×26.9	38×25	51
32×15	1.1/4×1/2	42.4×21.3	38×18	51
40×32	1.1/2×1.1/4	48.3×42.4	45×38	64
40×25	1.1/2×1	48.3×33.7	45×32	64
40×20	1.1/2×3/4	48.3×26.9	45×25	64
40×15	1.1/2×1/2	48.3×21.3	45×18	64
50×40	2×1.1/2	60.3×48.3	57×45	76
50×32	2×1.1/4	60.3×42.4	57×38	76
50×25	2×1	60.3×33.7	57×32	76
50×20	2×3/4	60.3×26.9	57×25	76
65×50	2.1/2×2	73.0×60.3	76×57	89
65×40	2.1/2×1.1/2	73.0×48.3	76×45	89
65×32	2.1/2×1.1/4	73.0×42.4	76×38	89
65×25	2.1/2×1	73.0×33.7	76×32	89
80×65	3×2.1/2	88.9×73.0	89×76	89
80×50	3×2	88.9×60.3	89×57	89
80×40	3×1.1/2	88.9×48.3	89×45	89
80×32	3×1.1/4	88.9×42.4	89×38	89
90×80	3.1/2×3	101.6×88.9	–	102
90×65	3.1/2×2.1/2	101.6×73.0	–	102
90×50	3.1/2×2	101.6×60.3	–	102
90×40	3.1/2×1.1/2	101.6×48.3	–	102
90×32	3.1/2×1.1/4	101.6×42.4	–	102
100×90	4×3.1/2	114.3×101.6	–	102
100×80	4×3	114.3×88.9	108×89	102
100×65	4×2.1/2	114.3×73.0	108×76	102
100×50	4×2	114.3×60.3	108×57	102
100×40	4×1.1/2	114.3×48.3	108×45	102
125×100	5×4	141.3×114.3	133×108	127
125×90	5×3.1/2	141.3×101.6	–	127
125×80	5×3	141.3×88.9	133×89	127
125×65	5×2.1/2	141.3×73.0	133×76	127
125×50	5×2	141.3×60.3	133×57	127
150×125	6×5	168.3×141.3	159×133	140
150×100	6×5	168.3×114.3	159×108	140
150×90	6×3.1/2	168.3×101.6	–	140
150×80	6×3	168.3×88.9	159×89	140
150×65	6×2.1/2	168.3×73.0	159×76	140
200×150	8×6	219.1×168.3	219×159	152
200×125	8×5	219.1×141.3	219×133	152
200×100	8×4	219.1×114.3	219×108	152
200×90	8×3.1/2	219.1×101.6	–	152
250×200	10×8	273.0×219.1	273×219	178
250×150	10×6	273.0×168.3	273×159	178
250×125	10×5	273.0×141.3	273×133	178
250×100	10×4	273.0×114.3	273×108	178
300×250	12×10	323.9×273.1	325×273	203
300×200	12×8	323.9×219.1	325×219	203
300×150	12×6	323.9×168.3	325×159	203
300×125	12×5	323.9×141.3	325×133	203
350×300	14×12	355.6×323.9	377×325	330
350×250	14×10	355.6×273.0	377×273	330
350×200	14×8	355.6×219.1	377×219	330
350×150	14×6	355.6×168.3	377×159	330
400×350	16×14	406.4×355.6	426×377	356
400×300	16×12	406.4×323.9	426×325	356
400×250	16×10	406.4×273.0	426×273	356
400×200	16×8	406.4×219.1	426×219	356
450×400	18×16	457×406.4	478×426	381
450×350	18×14	457×355.6	478×377	381
450×300	18×12	457×323.9	478×325	381
450×250	18×10	457×273.0	478×273	381
500×450	20×18	508×457	529×478	508
500×400	20×16	508×406.4	529×426	508
500×350	20×14	508×355.6	529×377	508
500×300	20×12	508×323.9	529×325	508
550×500	22×20	559×508	–	508
550×450	22×18	559×457	–	508
550×400	22×16	559×406.4	–	508
550×350	22×14	559×355.6	–	508
600×550	24×22	610×559	–	508
600×500	24×20	610×508	630×529	508
600×450	24×18	610×457	630×478	508
600×400	24×22	610×406.4	630×426	508
650×600	26×24	660×610	–	610
650×550	26×22	660×559	–	610
650×500	26×20	660×508	–	610
650×450	26×18	660×457	–	610
700×650	28×26	711×660	–	610
700×600	28×24	711×610	720×630	610
700×550	28×22	711×559	–	610
700×500	28×20	711×508	720×530	610
750×700	30×28	762×711	–	610
750×650	30×26	762×660	–	610
750×600	30×24	762×610	–	610
750×550	30×22	762×559	–	610
800×750	32×30	813×762	–	610
800×700	32×28	813×711	820×720	610
800×650	32×26	813×660	–	610
800×600	32×24	813×610	820×630	610
850×800	34×32	864×813	–	610
850×750	34×30	864×762	–	610
850×700	34×28	864×711	–	610
850×650	34×26	864×660	–	610
900×850	36×34	914×864	–	610
900×800	36×32	914×813	920×820	610
900×750	36×30	914×762	–	610
900×700	36×28	914×711	920×720	610
950×900	38×36	965×914	–	610
950×850	38×34	965×864	–	610
950×800	38×32	965×813	–	610
950×750	38×30	965×762	–	610
1000×950	40×38	1016×965	–	610
1000×900	40×36	1016×914	1020×920	610
1000×850	40×34	1016×864	–	610
1000×800	40×32	1016×813	1020×820	610
1050×1000	42×40	1067×1016	–	610
1050×950	42×38	1067×965	–	610
1050×900	42×36	1067×914	–	610
1050×850	42×34	1067×864	–	610
1100×1050	44×42	1118×1067	–	610
1100×1000	44×40	1118×1016	1120×1020	610
1100×950	44×38	1118×965	–	610
1100×900	44×36	1118×914	1220×920	610
1150×1100	46×44	1168×1118	–	711
1150×1050	46×42	1168×1067	–	711
1150×1000	46×40	1168×1016	–	711
1150×950	46×38	1168×965	–	711
1200×1150	48×46	1220×1168	–	711
1200×1100	48×44	1220×1118	1220×1120	711
1200×1050	48×42	1220×1067	–	711
1200×1000	48×40	1220×1016	1220×1020	711

Eccentric Reducer Dimensions Chart

Nominal Diameter		Outside Diameter		End to End
Nominal Diameter		D1*D2		End to End
DN	NPS	Series A	Series B	H
20×15	3/4×1/2	26.9×21.3	25×18	38
20×10	3/4×3/8	26.9×17.3	25×14	38
25×20	1×3/4	33.7×26.9	32×25	51
25×15	1×1/2	33.7×21.3	32×18	51
32×25	1.1/4×1	42.4×33.7	38×32	51
32×20	1.1/4×3/4	42.4×26.9	38×25	51
32×15	1.1/4×1/2	42.4×21.3	38×18	51
40×32	1.1/2×1.1/4	48.3×42.4	45×38	64
40×25	1.1/2×1	48.3×33.7	45×32	64
40×20	1.1/2×3/4	48.3×26.9	45×25	64
40×15	1.1/2×1/2	48.3×21.3	45×18	64
50×40	2×1.1/2	60.3×48.3	57×45	76
50×32	2×1.1/4	60.3×42.4	57×38	76
50×25	2×1	60.3×33.7	57×32	76
50×20	2×3/4	60.3×26.9	57×25	76
65×50	2.1/2×2	73.0×60.3	76×57	89
65×40	2.1/2×1.1/2	73.0×48.3	76×45	89
65×32	2.1/2×1.1/4	73.0×42.4	76×38	89
65×25	2.1/2×1	73.0×33.7	76×32	89
80×65	3×2.1/2	88.9×73.0	89×76	89
80×50	3×2	88.9×60.3	89×57	89
80×40	3×1.1/2	88.9×48.3	89×45	89
80×32	3×1.1/4	88.9×42.4	89×38	89
90×80	3.1/2×3	101.6×88.9	–	102
90×65	3.1/2×2.1/2	101.6×73.0	–	102
90×50	3.1/2×2	101.6×60.3	–	102
90×40	3.1/2×1.1/2	101.6×48.3	–	102
90×32	3.1/2×1.1/4	101.6×42.4	–	102
100×90	4×3.1/2	114.3×101.6	–	102
100×80	4×3	114.3×88.9	108×89	102
100×65	4×2.1/2	114.3×73.0	108×76	102
100×50	4×2	114.3×60.3	108×57	102
100×40	4×1.1/2	114.3×48.3	108×45	102
125×100	5×4	141.3×114.3	133×108	127
125×90	5×3.1/2	141.3×101.6	–	127
125×80	5×3	141.3×88.9	133×89	127
125×65	5×2.1/2	141.3×73.0	133×76	127
125×50	5×2	141.3×60.3	133×57	127
150×125	6×5	168.3×141.3	159×133	140
150×100	6×5	168.3×114.3	159×108	140
150×90	6×3.1/2	168.3×101.6	–	140
150×80	6×3	168.3×88.9	159×89	140
150×65	6×2.1/2	168.3×73.0	159×76	140
200×150	8×6	219.1×168.3	219×159	152
200×125	8×5	219.1×141.3	219×133	152
200×100	8×4	219.1×114.3	219×108	152
200×90	8×3.1/2	219.1×101.6	–	152
250×200	10×8	273.0×219.1	273×219	178
250×150	10×6	273.0×168.3	273×159	178
250×125	10×5	273.0×141.3	273×133	178
250×100	10×4	273.0×114.3	273×108	178
300×250	12×10	323.9×273.1	325×273	203
300×200	12×8	323.9×219.1	325×219	203
300×150	12×6	323.9×168.3	325×159	203
300×125	12×5	323.9×141.3	325×133	203
350×300	14×12	355.6×323.9	377×325	330
350×250	14×10	355.6×273.0	377×273	330
350×200	14×8	355.6×219.1	377×219	330
350×150	14×6	355.6×168.3	377×159	330
400×350	16×14	406.4×355.6	426×377	356
400×300	16×12	406.4×323.9	426×325	356
400×250	16×10	406.4×273.0	426×273	356
400×200	16×8	406.4×219.1	426×219	356
450×400	18×16	457×406.4	478×426	381
450×350	18×14	457×355.6	478×377	381
450×300	18×12	457×323.9	478×325	381
450×250	18×10	457×273.0	478×273	381
500×450	20×18	508×457	529×478	508
500×400	20×16	508×406.4	529×426	508
500×350	20×14	508×355.6	529×377	508
500×300	20×12	508×323.9	529×325	508
550×500	22×20	559×508	–	508
550×450	22×18	559×457	–	508
550×400	22×16	559×406.4	–	508
550×350	22×14	559×355.6	–	508
600×550	24×22	610×559	–	508
600×500	24×20	610×508	630×529	508
600×450	24×18	610×457	630×478	508
600×400	24×22	610×406.4	630×426	508
650×600	26×24	660×610	–	610
650×550	26×22	660×559	–	610
650×500	26×20	660×508	–	610
650×450	26×18	660×457	–	610
700×650	28×26	711×660	–	610
700×600	28×24	711×610	720×630	610
700×550	28×22	711×559	–	610
700×500	28×20	711×508	720×530	610
750×700	30×28	762×711	–	610
750×650	30×26	762×660	–	610
750×600	30×24	762×610	–	610
750×550	30×22	762×559	–	610
800×750	32×30	813×762	–	610
800×700	32×28	813×711	820×720	610
800×650	32×26	813×660	–	610
800×600	32×24	813×610	820×630	610
850×800	34×32	864×813	–	610
850×750	34×30	864×762	–	610
850×700	34×28	864×711	–	610
850×650	34×26	864×660	–	610
900×850	36×34	914×864	–	610
900×800	36×32	914×813	920×820	610
900×750	36×30	914×762	–	610
900×700	36×28	914×711	920×720	610
950×900	38×36	965×914	–	610
950×850	38×34	965×864	–	610
950×800	38×32	965×813	–	610
950×750	38×30	965×762	–	610
1000×950	40×38	1016×965	–	610
1000×900	40×36	1016×914	1020×920	610
1000×850	40×34	1016×864	–	610
1000×800	40×32	1016×813	1020×820	610
1050×1000	42×40	1067×1016	–	610
1050×950	42×38	1067×965	–	610
1050×900	42×36	1067×914	–	610
1050×850	42×34	1067×864	–	610
1100×1050	44×42	1118×1067	–	610
1100×1000	44×40	1118×1016	1120×1020	610
1100×950	44×38	1118×965	–	610
1100×900	44×36	1118×914	1220×920	610
1150×1100	46×44	1168×1118	–	711
1150×1050	46×42	1168×1067	–	711
1150×1000	46×40	1168×1016	–	711
1150×950	46×38	1168×965	–	711
1200×1150	48×46	1220×1168	–	711
1200×1100	48×44	1220×1118	1220×1120	711
1200×1050	48×42	1220×1067	–	711
1200×1000	48×40	1220×1016	1220×1020	711

Are Custom Sizes Available for Concentric Reducer/ Eccentric Reducer?

Yes, custom sizes for Concentric Reducer/ Eccentric Reducer are available at Yash Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@yashfittings.com

Stainless Steel Eccentric Reducer Price List in India, Nickel Alloy Eccentric Reducer Manufacturer in West Mumbai, Carbon Steel Eccentric Reducer Thickness, Super Duplex Steel Concentric Reducer Supplier in Mumbai, SMO 254 Welded Concentric Reducer Exporter in Mumbai, Hastelloy Unequal Reducer Supplier in India, Copper Nickel Eccentric Reducer Distributor in Mumbai, Super Duplex Steel Concentric Reducer Supplier in West Mumbai, Hastelloy Eccentric Reducer Distributor in India, Butt Weld Concentric Reducer Sizes in mm

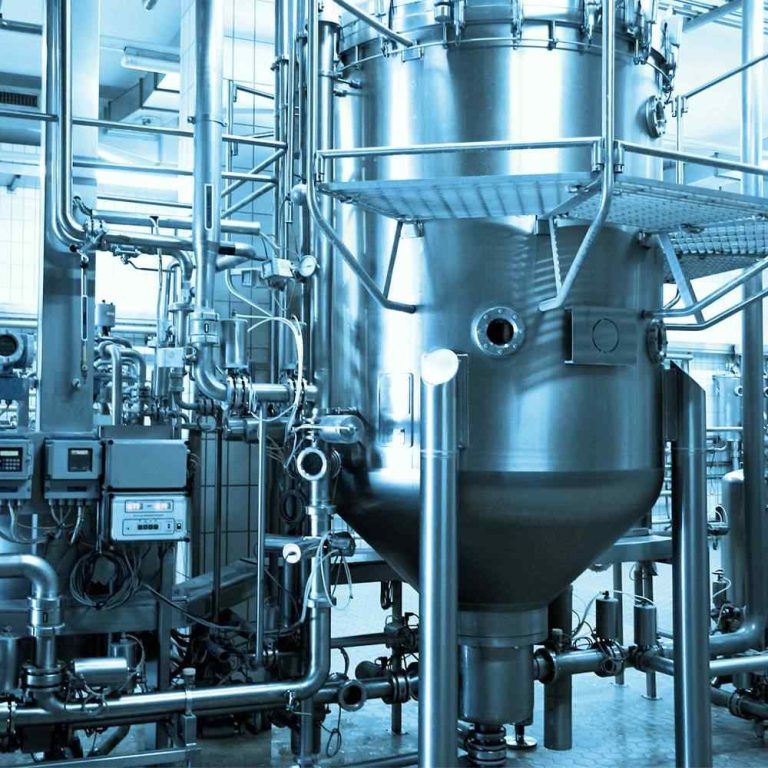

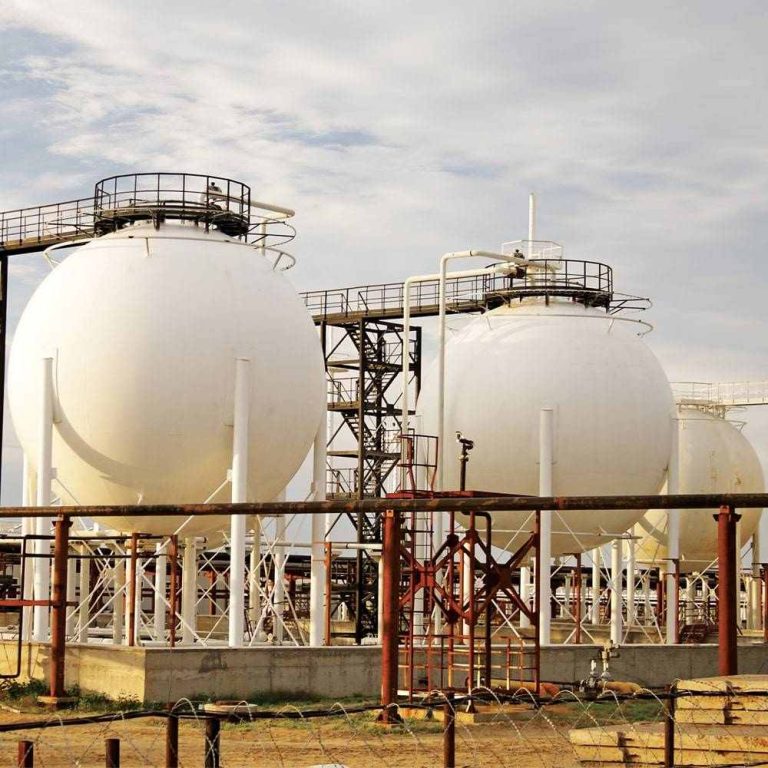

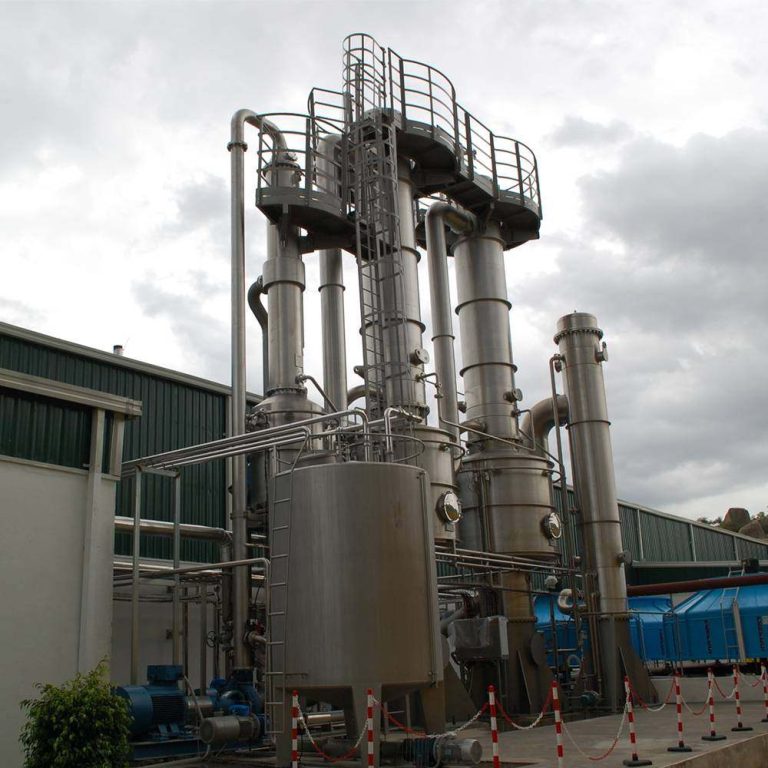

Application Industry of Concentric Reducer/ Eccentric Reducer

Concentric and Eccentric Reducers are critical piping system components utilized to link pipes of varying diameters in a way that ensures smooth flow and system integrity. The Concentric reducer is suitable for vertical pipelines, which enable even transition of flow, whereas the eccentric reducer is applicable in horizontal pipelines to avoid the collection of air or fluid accumulation. These connectors find extensive application in industries like oil & gas, chemical processing, power generation, water treatment, and HVAC systems. They control flow rates, dampen turbulence, and provide effective operation in both high- and low-pressure usage.
